For occasions: 1 IC card water meter, heat meter. 2 Air-conditioning fan coil, fire sprinkler. 3 Solar energy drain valve, high efficiency water-saving. 4 Automatic control systems, university water system, small scale industrial automation equipment,

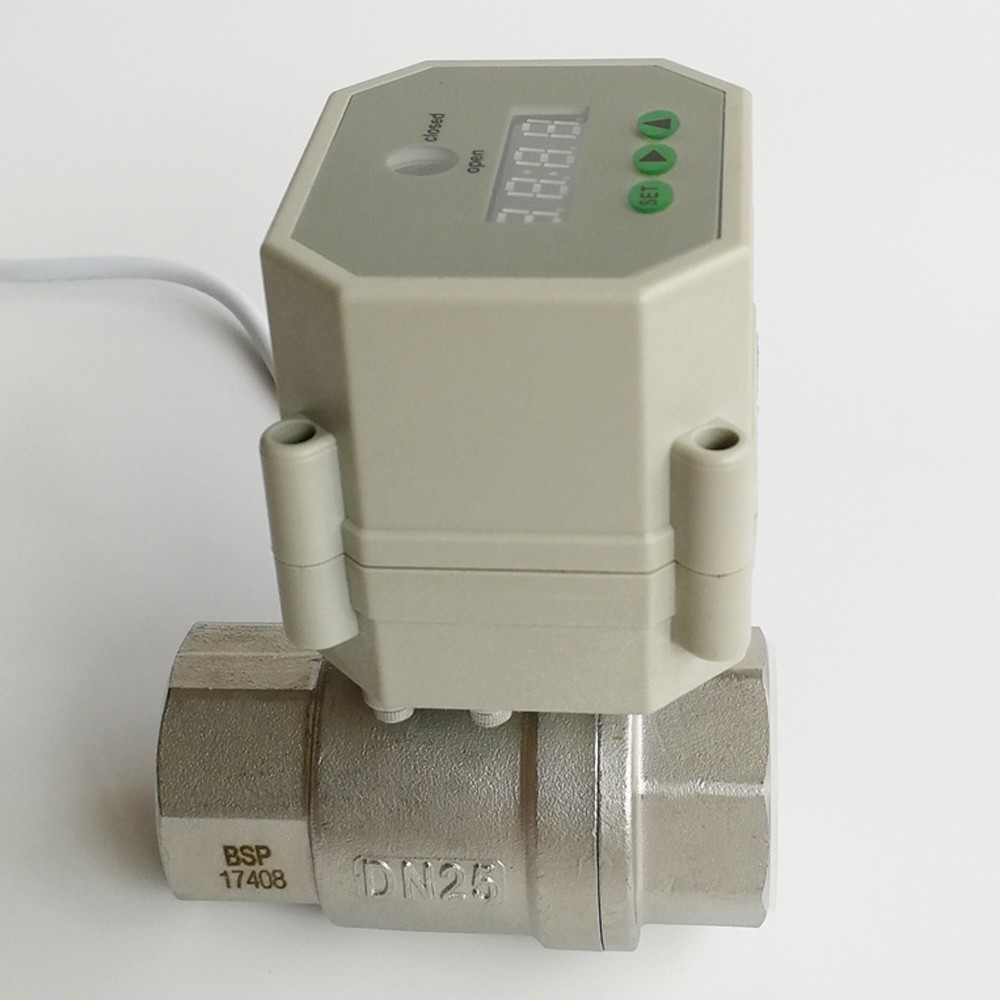

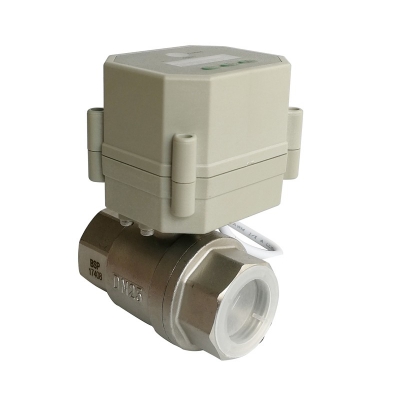

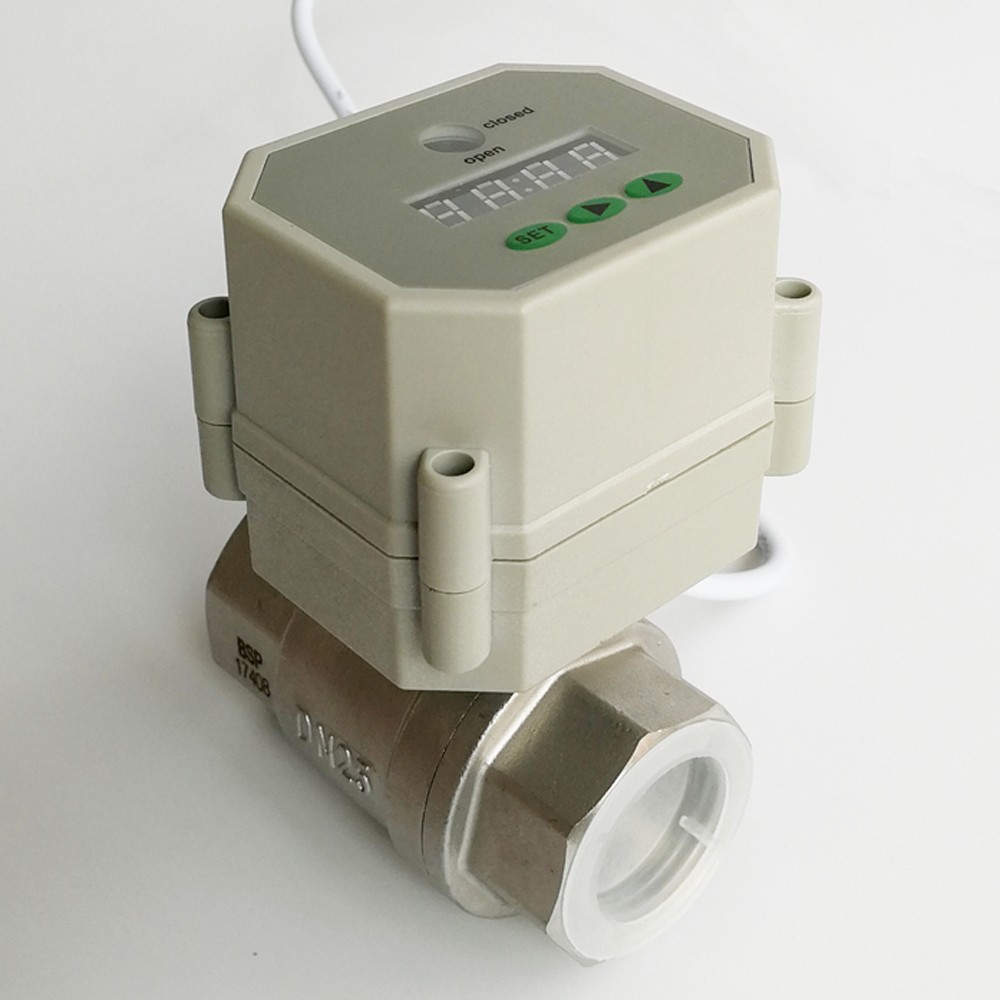

Product Name: 1'' SS304 time control motorized valve for drain water.
Technical Parameters:
Product size | NPT/BSP 1" |
Maximum working pressure | 1.0MPa |
Circulation medium | Fluid, air |
Rated voltage | AC/DC9-24V, AC110-230V (Optional) |
Working current | ≤500MA |
Open/close time | ≤7S |
Life time | 50000 times |
Valve Body material | 304 Stainless steel |
Actuator material | Engineering Plastics |
Sealing material | EPDM & PTFE |
Actuator rotation | 90° |
Max. torque force | 4 Nm |
Cable Length | 0.5m,1.5m,(Optional) |
Environment temperature | -15℃～50℃ |
Liquid temperature | 2℃～90℃ |
Manual override | No |
Indicator | Yes |
Protection class | IP67 |
Parameter Specifies:
Working voltage: AC/DC9-24V, 110VAC-230VAC (Optional)
The time for valve open: 0H:0M:0S -- 99H 59M 59S
The time for valve closed: 0H:0M:0S--99H 59M 59S
Design feature:
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unit testing.
4 Good sealing performance
For occasions:
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, smallscale industrial automation equipment, environ-metal protection.
Application for:
1, IC card water meter,heat meter,air conditioning,automatic humidification.
2,Automatic drainage device,college saving appliances.
3,The industrial automation small equipment,environmental protection and other fields,replace the solenoid valve can not work stably occasions
Parameter Specifies:
Working voltage: 110V-230VAC
The time for valve open: 0H:0M:0S -- 99H 59M 59S
The time for valve closed: 0H:0M:0S--99H 59M 59S
Manual：
