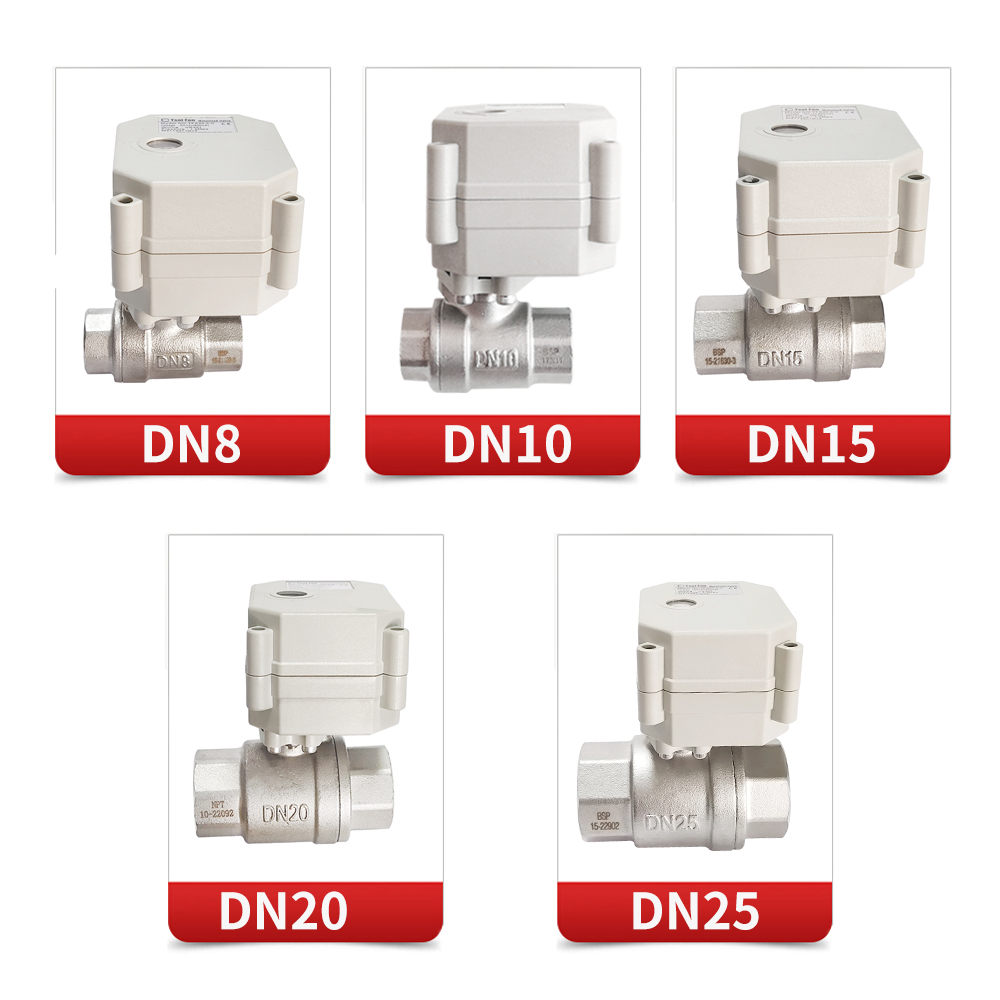

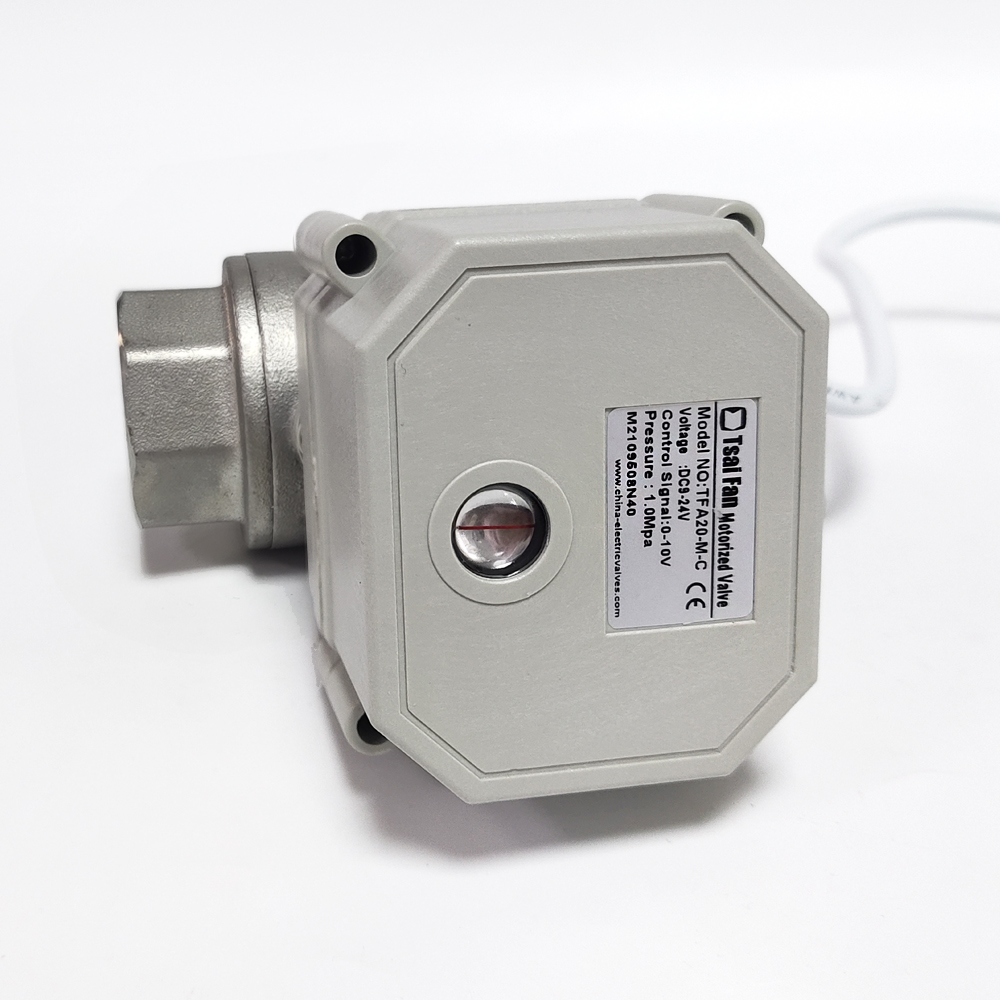

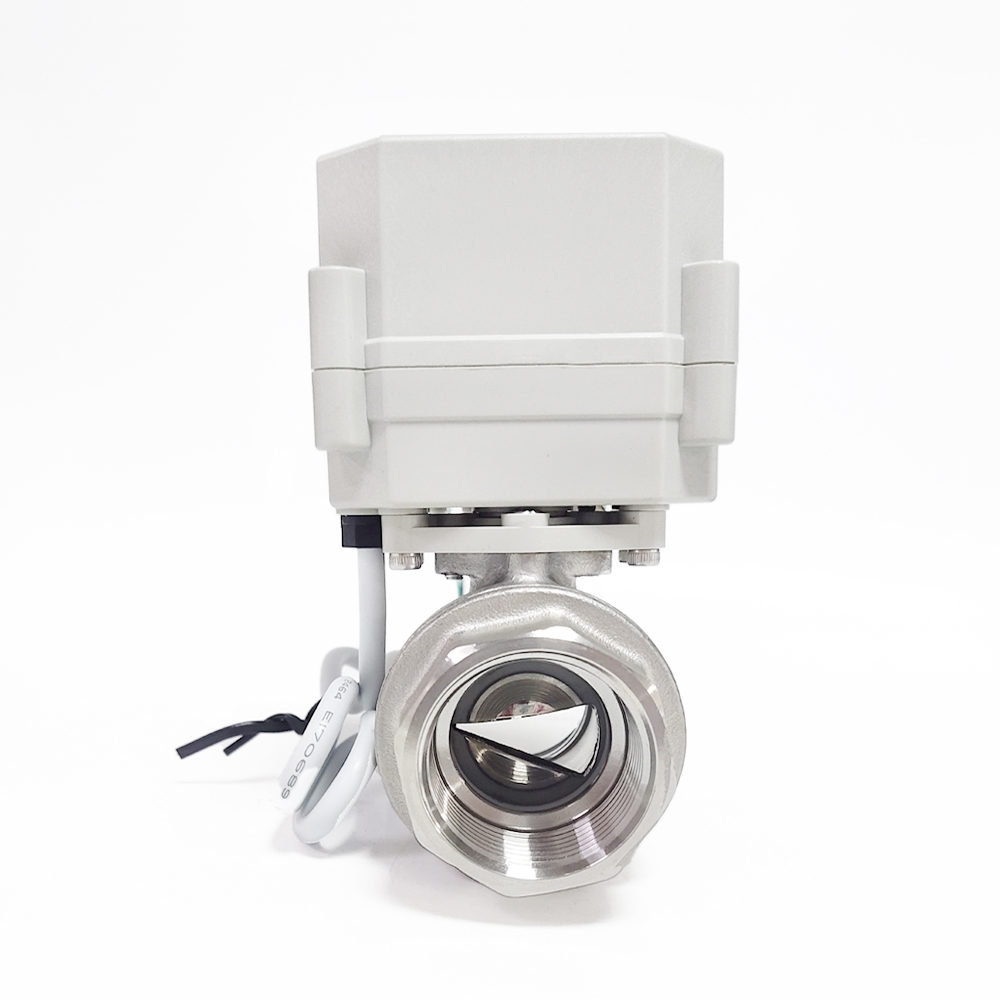

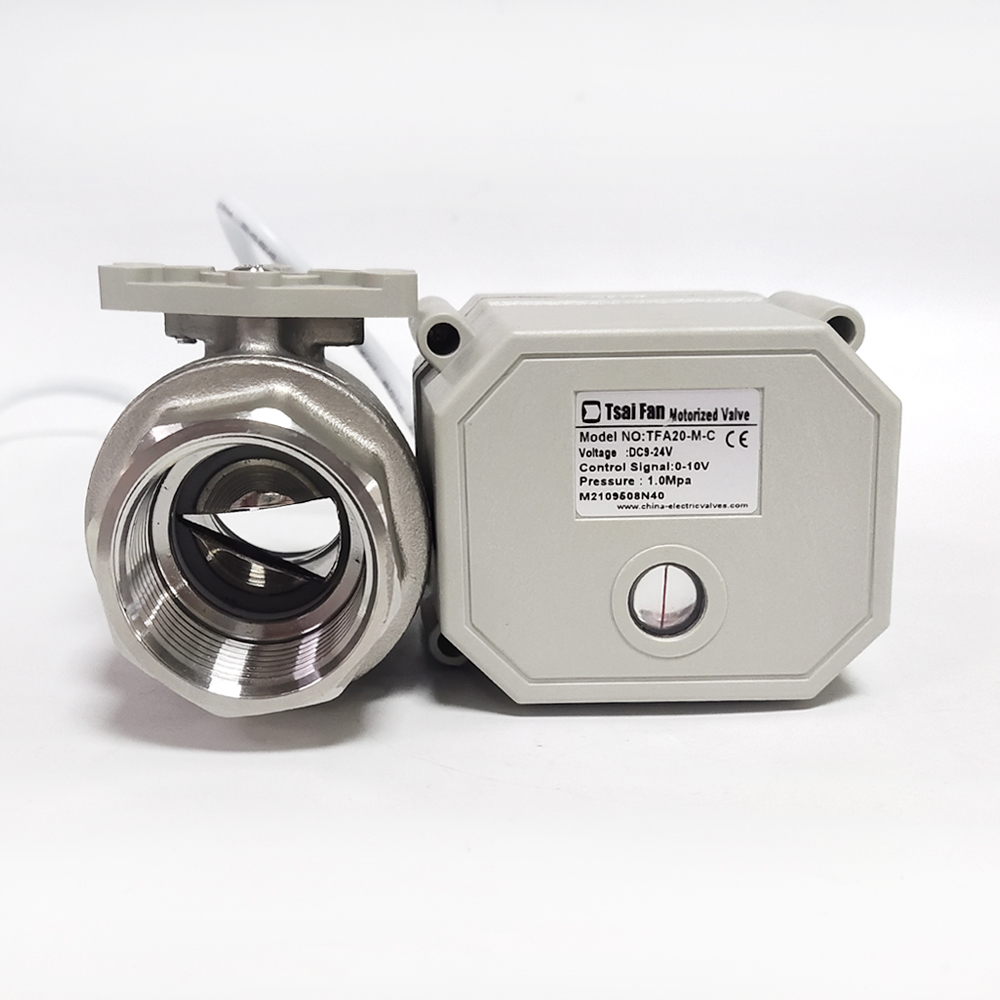

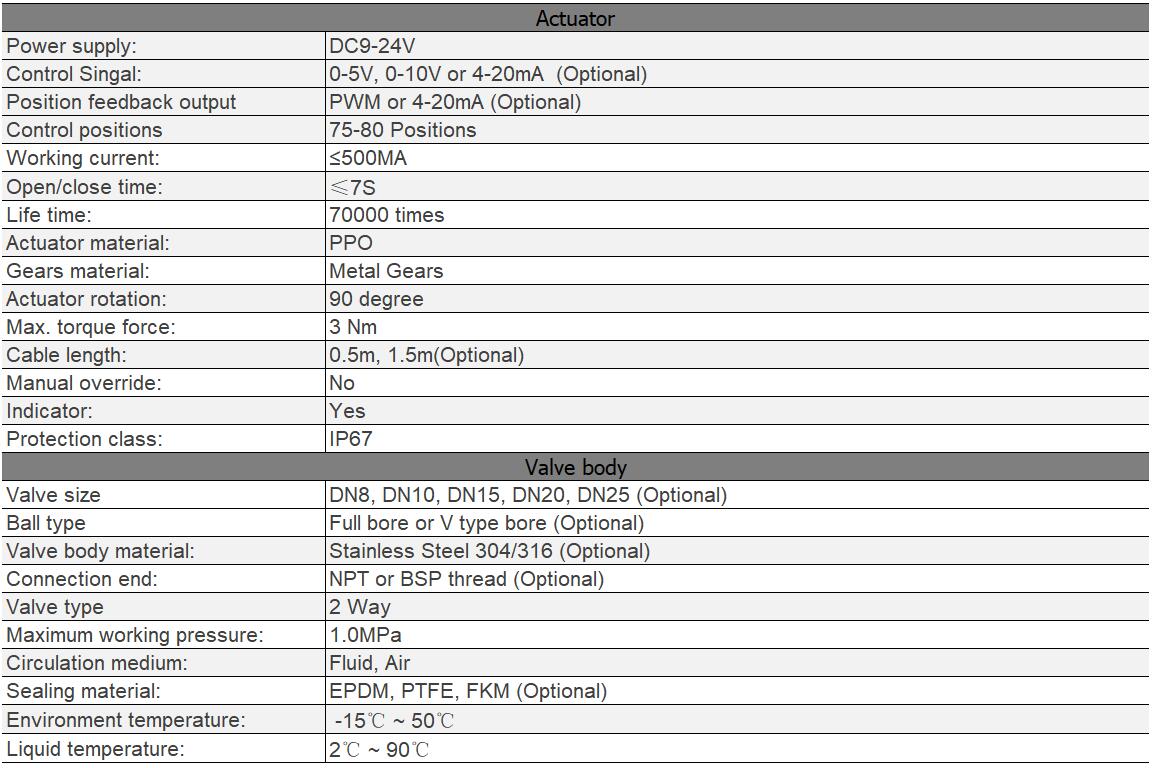

Stainless Steel Electric Proportional Valve with 3Nm Electric Actuator

Stainless Steel Electric proportional Valve analog control signal 0-5V, 0-10V, 4-20mA, with Full port or V port Ball. Also called modulating valve, electric control valve, adjusting valve or Analog control valve

motorized ball valve

proportional valves, control valves, electric valve, motorized valves for flow control purporse

motorized ball valve

Main components material:

No.

Name

Material

Qty

1

Actuator

PPO

1

2

Body cover

SS304

1

3

O-ring

FKM

2

4

Sealing

PTFE

2

5

Ball

SS304

1

6

Steam

SS304

2

7

O-ring

FKM

2

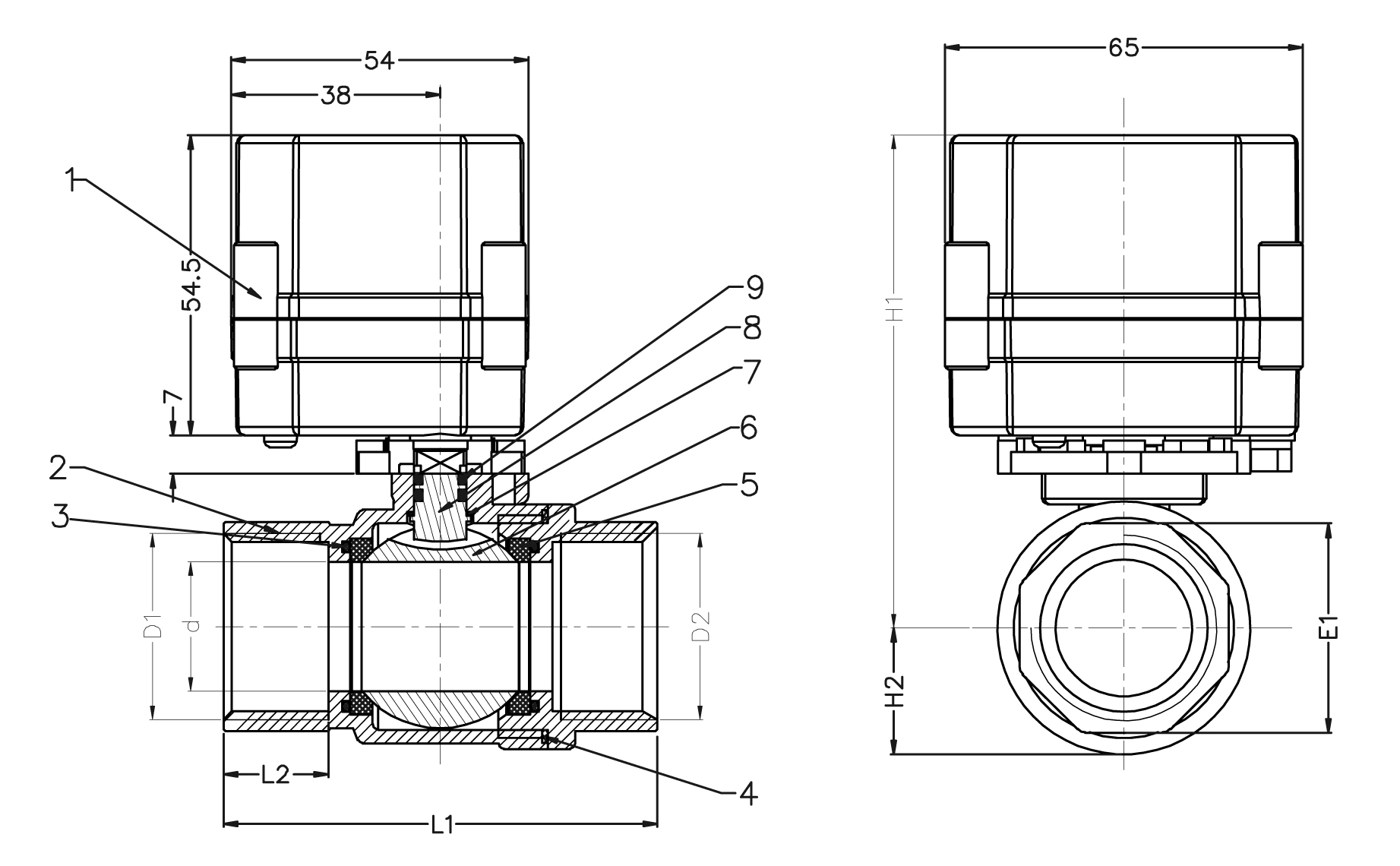

Electric Valve Dimension:

Size (mm)

D1/D2

d

L1

L2

E1

H1

H2

TF8(1/4”)Electric valve

1/4”

10

51

12

21

82.5

14

TF10(3/8”)Electric valve

3/8”

10

51

12

21

82.5

14

TF15(1/2”) Electric valve

1/2”

15

63

14

25

84.5

17

TF20(3/4”) Electric valve

3/4”

20

72

17

31

88

20

TF25(1”) Electric valve

1”

25

81

18

38

91

24


proportional valves, control valves, electric valve, motorized valves for flow control purporse

motorized ball valve

1, RD connect DC9-24V positive

2, BK connect DC9 ~ 24V( 4-20mA-/0-5V-/0-10V) negative

3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)

4, YW connect LED light(between 9-24V), when there is error, the light will ON.

5, WT connect position feedback ,OC output PWM signal

◎ PWM frequency0-100Hz duty 5-95%


motorized ball valve

1, RD connect DC9-24V positive

2, BK connect DC9 ~ 24V( 4-20mA-/0-5V-/0-10V) negative

3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)

4, YW connect LED light(between 9-24V), when there is error, the light will ON.

5, WT connect position feedback ,OC output PWM signal

◎ PWM frequency0-100Hz duty 5-95%


motorized ball valve

1, RD connect DC9-24V positive

2, BK connect DC9 ~ 24V( 4-20mA-/0-5V-/0-10V) negative

3 GR connect position input /control current +/ control voltage +(4-20mA, 0-5V, 0-10V)

4, YW connect LED light(between 9-24V), when there is error, the light will ON.

5, WT connect position feedback ,OC output PWM signal

◎ PWM frequency0-100Hz duty 5-95%


proportional valves, control valves, electric valve, motorized valves for flow control purporse

motorized ball valve


proportional valves, control valves, electric valve, motorized valves for flow control purporse

motorized ball valve

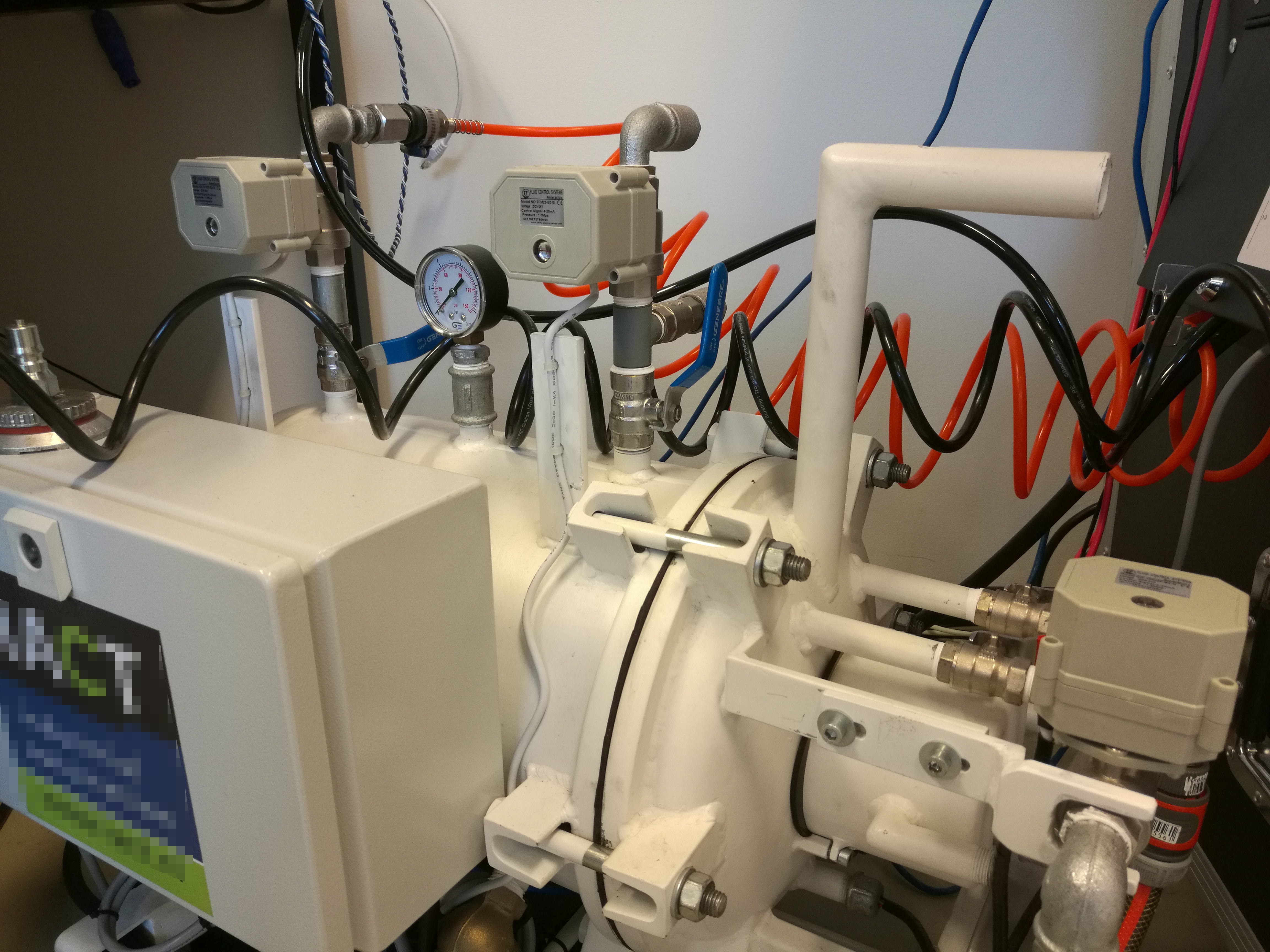

The flow characteristics of electric control valves are: linear characteristics, equal percentage characteristics and parabolic characteristics. Application fields Electric power, chemical industry, metallurgy, environmental protection, water treatment, light industry, building materials and other industrial automation system fields.
