proportional valve 0-10V/4-20mA modulating valve with 6Nm actuator

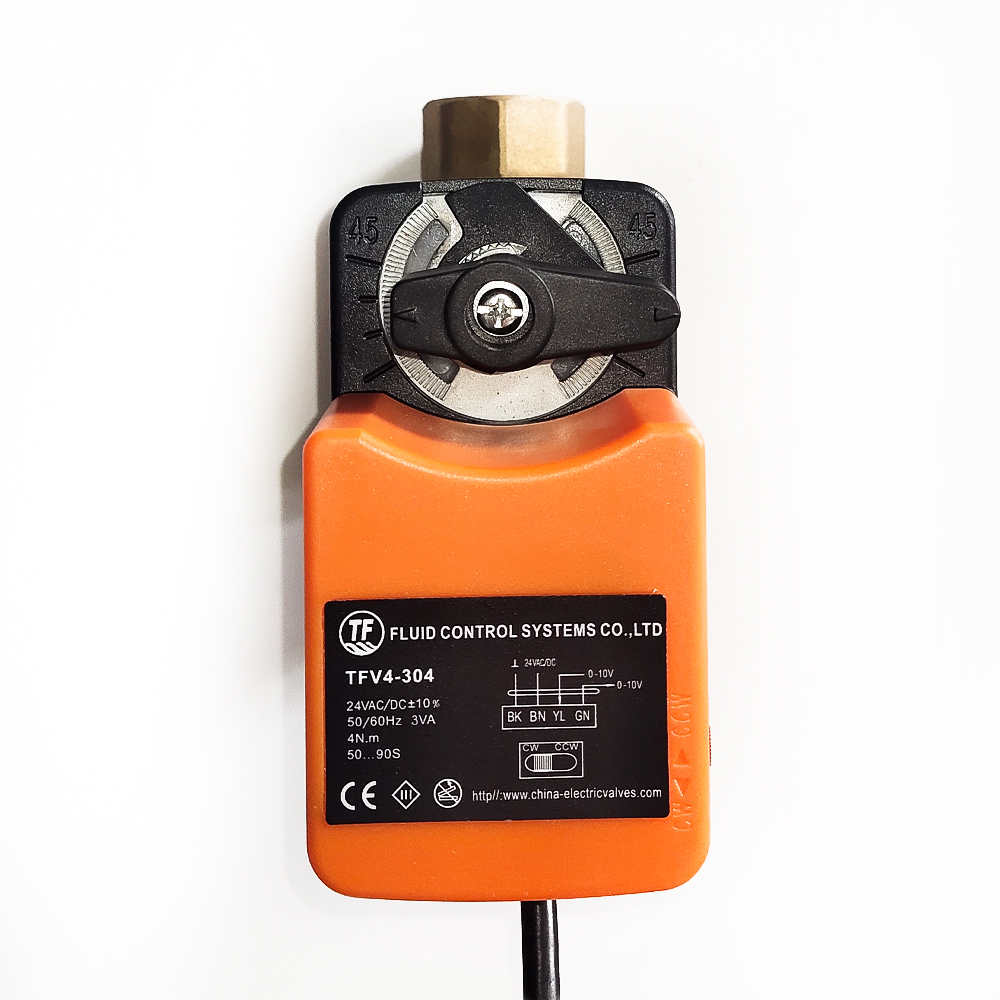

Brass 2 way proportion valve, AC/DC24V 0-10V modulating valve with 6Nm Actuator

2 Way Brass Proportion valve, 6Nm modulating valve, 0-10V control ball valve, 4-20mA Electric Control valve AC/DC24V DN15 to DN25 with Manual override with 4Nm Actuator

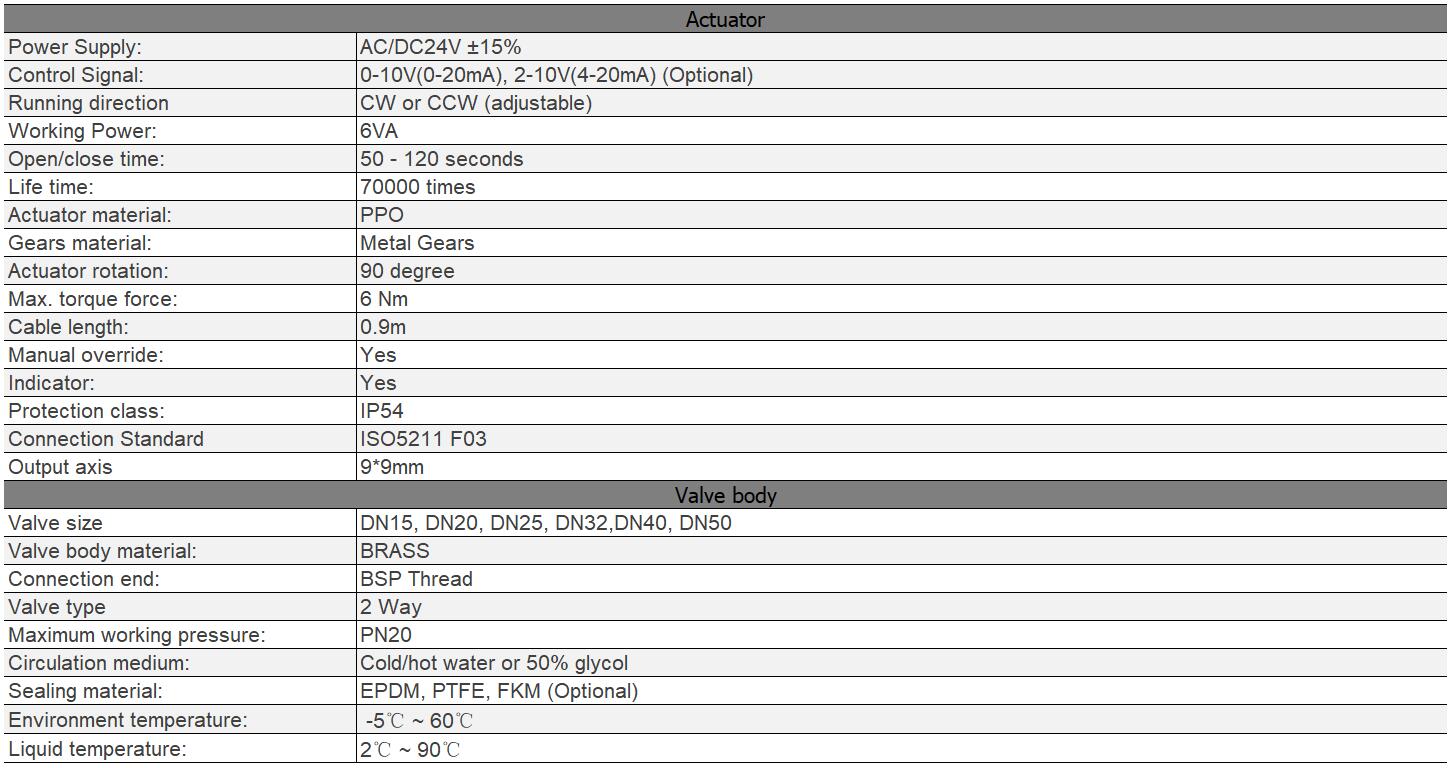

Valve Sizes： DN15 - DN50

Power： AC/DC24V

Control signal： 0-10V/4-20mA

Feedback： 4-20mA

Torque force： 6Nm

Valve connection： BSP

Tsaifan Electric Valve

proportional valves, control valves, electric valve, motorized valves for flow control purporse

Tsaifan Electric Valve

proportional valves, control valves, electric valve, motorized valves for flow control purporse

Tsaifan Electric Valve

proportional valves, control valves, electric valve, motorized valves for flow control purporse

Tsaifan Electric Valve

The flow characteristics of electric control valves are: linear characteristics, equal percentage characteristics and parabolic characteristics. Application fields Electric power, chemical industry, metallurgy, environmental protection, water treatment, light industry, building materials and other industrial automation system fields.

proportional valves, control valves, electric valve, motorized valves for flow control purporse

label: 6Nm Electric Proportional Valve 2 Way Brass
