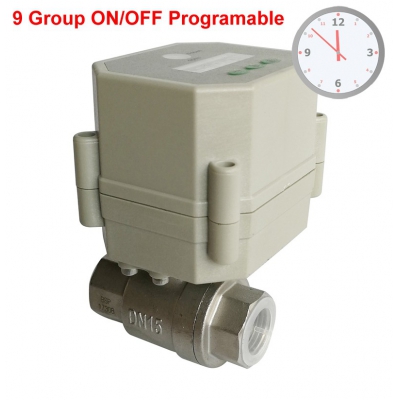

SS304 Electric time control valve,220V motorized timing valve 24 Hours clock setting SS304 electric ball valve

DN25 Timer ss304 valve with 1" stainless valve body

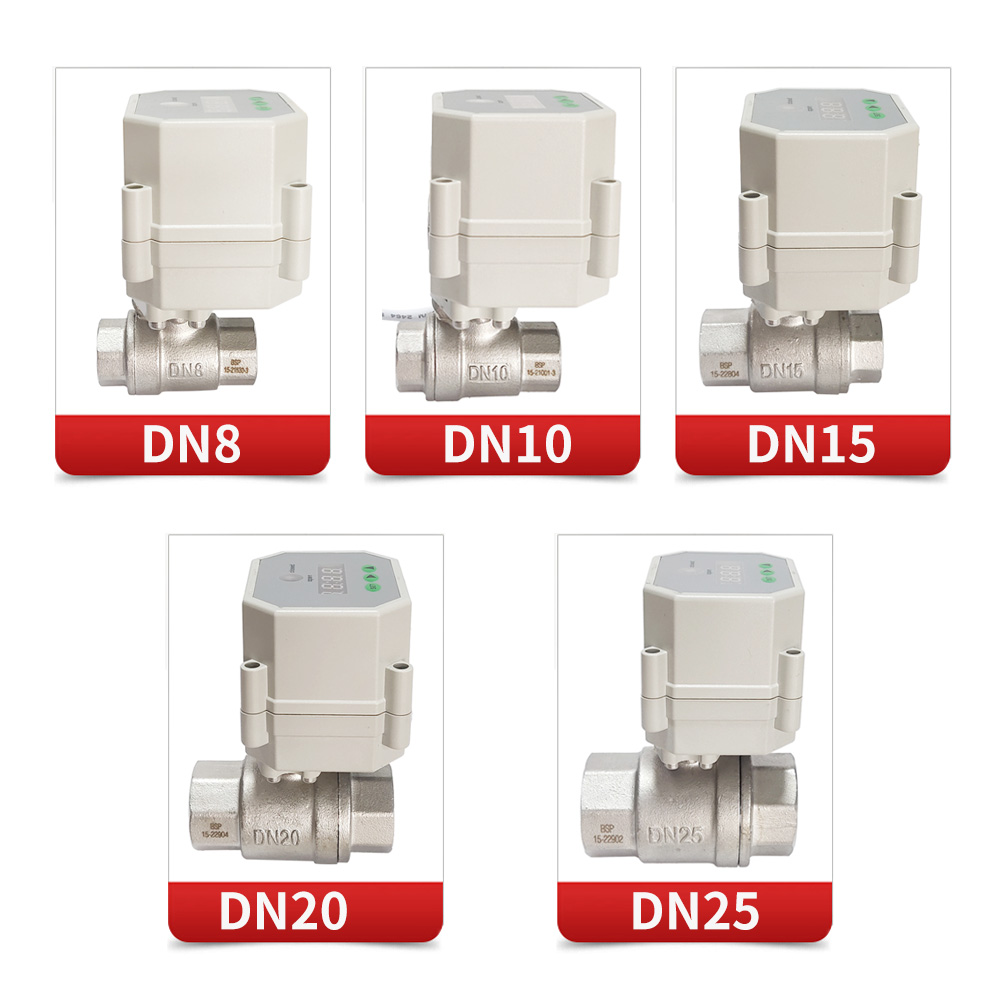

  • Valve sizes: DN8 - DN25
  • Power: A/DC9-24V/110-230
  • Valve material: SS304/SS316
  • Valve connection: BSP/NPT
  • Power Failure Return: Optional
  • Memory: Optional

Technical Parameters:

Valve size

 1/4" to 1” (DN8 to DN25)BSP/NPT (Optional)

Maximum working pressure

1.0 MPa

Circulation medium

Cold/hot water,<50% glycol

Rated voltage

AC/DC9-24V or AC110-230V (Optional)

Working current

≤500mA

Open/close time

≤7S

Life time

70000 times

Valve Body material

SS304/SS316

Actuator material

Engineering Plastics

Sealing material

FKM & PTFE

Actuator rotation

90°

Max. torque force

4 N.M

Cable Length

0.5m

Environment temperature

-15℃50℃

Liquid temperature

2℃90℃

Manual override

No

Indicator

Yes

Protection class

IP67

“Spring return” function

Yes/No

Certificate

CE(LVD EMC)

Company passed

ISO9001:2008


1 Parameter specifies

Working voltage : AC/DC9-24 or AC110230V

The timer controlled valve is clock type timer controlled valve, it is in 24-hour timer system, you can set 9 groups time to make the valve open and close at various times a day.



2 Timer specifications

motorized ball valve

3 Operation instructions

Actuator parameter setting has two menu structures on below:

Function code (first menu),

The setting parameters of function code (secondary menu)

motorized ball valve

Picture 0 Secondary menu operation menu

Function code

Content

Value

Unit

Remarks

CLO


open Setting the current time


00:00:00 – 23:59:59

H:M:S


PAIR

set groups time

1-9

H:M:S


TO (1-9)

Valve opening time

00:00:00 – 23:59:59

H:M:S


TF (1-9)

Valve closed time

00:00:00 – 23:59:59

H:M:S


Prot

Stall current setting

450

mA

When the current is bigger than the setting value 1.6S, the motor will stop working, and the display will show Err.

motorized ball valve

Tsaifan Electric Valve

Tsaifan Electric Valve

Tsaifan Electric Valve

4 When valve is working condition, the clock it shows on screen is the down counting time from next movementsuch as: after 15minutes and 10seconds valve will open/close again, screen will show 1510),When ” : ” is flashing it means the time showed on screen isHourminute. When “:” is lighting all the time, it means the screen showed isMinutesecond.



4 Stalling protection function

When the actuator is detected stalling, it will run in reverse direction .when reach to the open or closed position, and do the close or open action again, mean well displaying flashed 0000-0001 on screen (indicating the current retrying times). If it fails at third retrying, the valve will stop running and display ERRL on the screen.
